AD0624VB-A71GP（P）
地區城市：廣東省 －深圳 更新時間：2013-7-15 22:43:11
聯 系 人： 李 有效期限：2014-7-9 12:12:27
公司名稱：深圳市旺景科技有限公司
電子信箱：sam@smartfan.com.cn 聯系電話：86-755-83286865

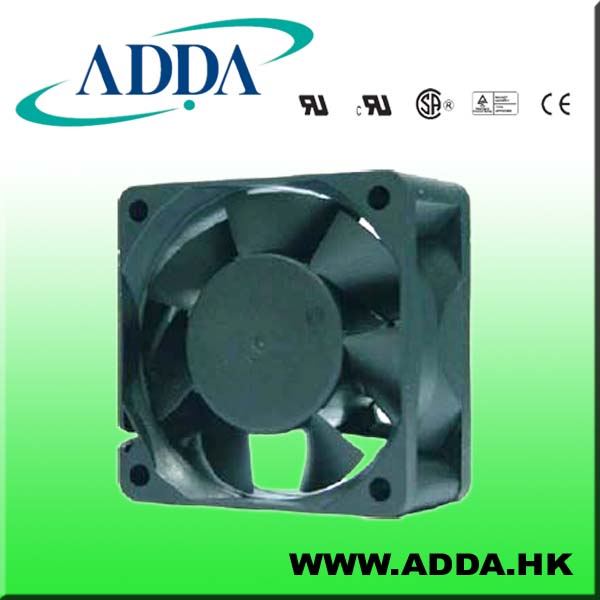

ADDA 60X60X25mm 12v dc cooling fan AD6025GP
1. frame size(mm): 60X60X25
2. bearing type: ball bearing
3. max air flow: 37.31CFM
4. max noise:53.3dBA
ADDA 60X60X25mm 12v dc cooling fan AD6025GP
|
Frame size(mm) |
60X60X25 | |
|
2 |
Bearing type |
ball bearing |
|
3 |
Rated voltage |
12V |
|
4 |
Rated speed |
2500~7500RPM |
|
5 |
Max air flow |
37.31CFM |
|
6 |
maxiam pressure: |
17.48mmAq |
|
7 |
Maxiam noise |
53.3dBA |
|
8 |
Functions |
by IC, by IC with FG,by IC with RD,VS+RD,PWM+FG |
|
9 |
safety approvals |
CE,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA max at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
ADDA AD6025GP cooling fan feature:
1. high performance-stronger airflow and static pressure design
2. higher efficiency-low power consumption design
3. high reliability-reliable components adopted
4. new impeller design-one or more stage of structure design
ADDA AD6025GP cooling fan application:
server system, communication equipment, projector, power supply, etc
ADDA AD6025GP cooling fan
1. frame size(mm): 60X60X25
2. bearing type: ball bearing
3. max air flow: 37.31CFM
4. max noise:53.3dBA
ADDA AD6025GP cooling fan
|
1 |
Frame size(mm) |
60X60X25 |
|
2 |
Bearing type |
ball bearing |
|
3 |
Rated voltage |
12V |
|
4 |
Rated speed |
2500~7500RPM |
|
5 |
Max air flow |
37.31CFM |
|
6 |
maxiam pressure: |
17.48mmAq |
|
7 |
Maxiam noise |
53.3dBA |
|
8 |
Functions |
by IC, by IC with FG,by IC with RD,VS+RD,PWM+FG |
|
9 |
safety approvals |
CE,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA max at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
ADDA AD6025GP cooling fan feature:
1. high performance-stronger airflow and static pressure design
2. higher efficiency-low power consumption design
3. high reliability-reliable components adopted
4. new impeller design-one or more stage of structure design
ADDA AD6025GP cooling fan application:
server system, communication equipment, projector, power supply, etc
